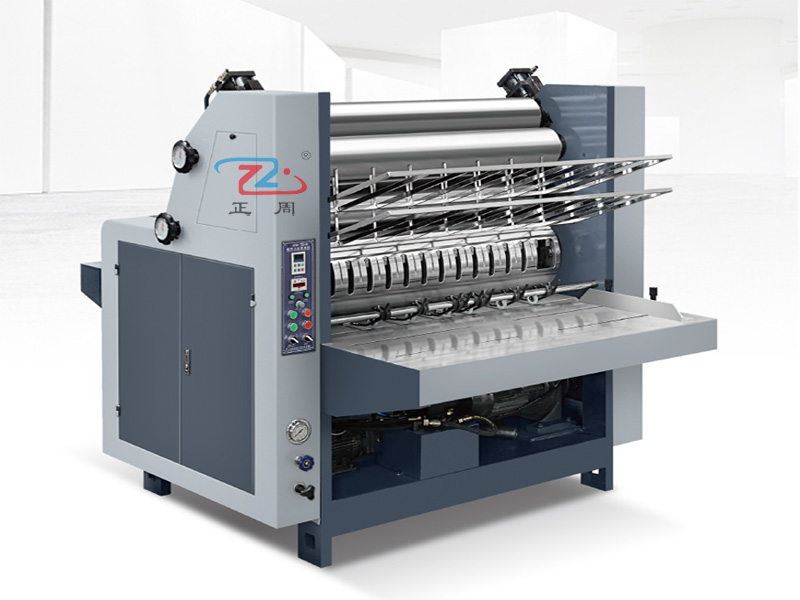

ZDBK-1150 Fully Automatic Card Mounting Machine with a speed of 4000 sheets / hour. The vacuum pump drives Feida and paper feeding. There is a double sheet control in front of the paper feeding. When the paper is fed with two or more sheets, the inclined sheet will stop automatically.
The laminating part is composed of a group of large rollers and two groups of small rollers. The diameter of the large roller is 320mm and the diameter of the small roller is 160mm. The large roller is equipped with teeth. The paper is bitten by the large roller, and the finished product is produced after pressing between the two small rollers.
Its main working performance is: less glue, fast drying and good paper stiffness.
|
Model
|
ZDBK-850
|
ZDBK-1150
|
|
Min. Paper Size
|
240×280mm
|
280×280mm
|
|
Max. Paper Size
|
800×600mm
|
1080×800mm
|
|
Thickness of Paper
|
150-900gsm
|
150-900gsm
|
|
Laminating Speed
|
4000 sheets/hour
|
4000 sheets/hour
|
|
Stack Height of Paper Feeding Table
|
920mm
|
920mm
|
|
Stack Height of Paper Receiving Table
|
1450mm
|
1450mm
|
|
Temperature Range
|
20-120°C
|
20-120°C
|
|
Power
|
13KW
|
16KW
|
|
Weight
|
5500kg
|
6500kg
|
|
Max. Working Pressure
|
50T
|
50T
|
|
Dimension(L*W*H)
|
7500×1600×2200mm
|
9500×1900×2200mm
|
