KFMJ-C Semi automatic Mounting Machine Beautiful in appearance compact in structure, small in size and durable in service life. Easy in adjustment simple in operation and convenient maintenance .
Uniform in glue distribution, quick in bonding and strong in bonding force . Clean in surface with dirt and bonding sides. Automatic alignment, stable in quality, no shrinkage, easy obtaining correctness. Flat, beautiful, low moisture content, without moldy effect. Low consumption of glue (0.01 Yuan per square meter), low power consumption, low in cost, high in efficiency. 4-45pcs/min (adjustable).
Applicable for various types of papers (not standard papers) and irregular papers. High-accuracy in recombination, error:0.1-0.3 applicable for paper combination for special requirements. Surface of paper with non-effect (frosted, ice-flower, membrane etc). The hydraulic pressure device, with convenient operation available. Lacking-paper automatic stop.

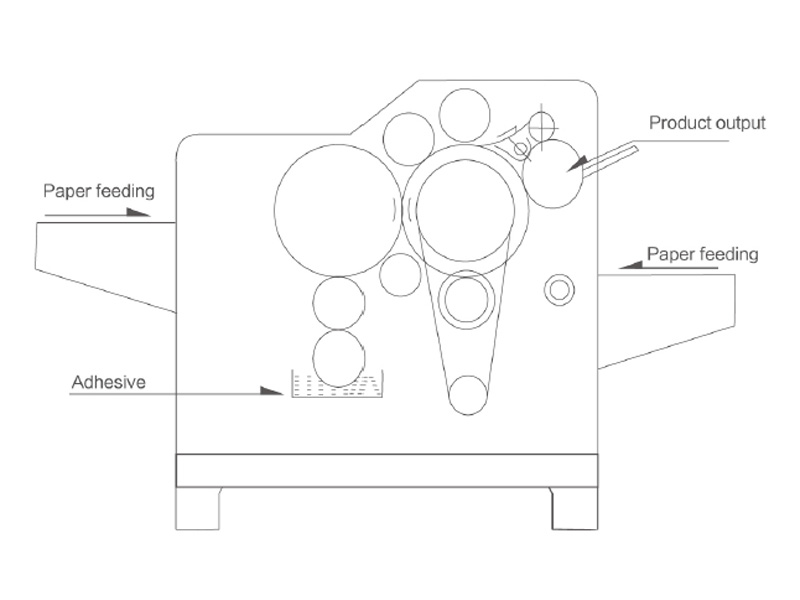

Type KFMJ-C Semi automatic Mounting Machine for Card Paper is another brand new model (namely the three generation) developed firstly successfully by our Company on the basis of type A and B, it is an integration of pneumatic, hydraulic, photoelectric and mechanical technology. Equipped with photoelectric counting, No-sheet detecting function and full hydraulic device, it is adopted imported pneumatic, hydraulic and photoelectric components with a capable of automatically controlling false actions, i.e. if there is no paper input to either sides when laminating, the other side shall not be fed, a voiding paper bonded on the big roller due to no paper laminated with the paper from the single side after feeding and pasting, save the time to frequently clean the adhered roller, therefore reduce the troubles , significantly cut down defect rate for laminating paper, improve accuracy and speed for laminating paper.
This Semi automatic Mounting Machine for Card Pape also adopts the most advanced domestic hydraulic technology to complete the whole process of paper pasting, bonding and laminating, to make even and little pasting to better bonding effect. The machine is easy to operate with productive, high quality, smooth and beautiful laminated papers.
This Mounting Machine for Card Pape is uncomparable with any of cardboard laminators in current market, which is the most advanced multi-functional cardboard laminator among domestic like products. It is an ideal special equipment for bonding and making high class cardboard and cardboards for other applications used for various package boxes.
|
Model
|
KFMJ-1000C
|
KFMJ-1150C
|
KFMJ-1300C
|
|
Minimal size
|
260×260mm
|
320×320mm
|
320×320mm
|
|
Maximal size
|
960×680mm
|
1110×680mm
|
1260×870mm
|
|
Thickness of
laminating paper
|
100-500g
|
100-500g
|
100-500g
|
|
Laminating
speed
|
4-45(piece/min)
|
4-45(piece/min)
|
4-45(piece/min)
|
|
Laminating
accuracy
|
Tolerance0.1mm
|
Tolerance0.2mm
|
Tolerance0.2mm
|
|
Power supply
|
380/220伏
|
380/220伏
|
380/220伏
|
|
Power supply
|
2.2kw+0.75kw
|
2.2kw+0.75kw
|
3.2kw+0.75kw
|
|
Motor power
|
2.2T
|
2.3T
|
3T
|
|
Overall
dimensions
|
2030×1460×1320mm
|
2030×1640×1370mm
|
2750×1790×1460mm
|
|
Package
dimensions(domestic)
|
2160×1670×1540mm
|
2160×1910×1590mm
|
2860×2080×1640mm
|
|
Package
dimensions(exported)
|
2170×1680×1550mm
|
2170×1920×1600mm
|
2870×2090×1650mm
|
Applicable Industries of Card mounting machine
Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company, Other
Part
- High speed Feida is directly driven by servo motor (traditional is using transmission shaft), and some of the parts are imported.
- It has four suction and two feeding structure with strong paper suction.The suction head can adjust various paper suction angles according to the deformation of the paper, which can better ensure the smooth paper feeding from thin paper to thick cardboard paper.
- Equipped with Feida head quick adjustment device. Equipped with 3-channel Feida head anti-collision device to protect Feida head.
Transportation transport
- The paper feeding part is driven by synchronous belt. The paper feeding accessories are changed to general type, which help the paper feeding with stable.
- Using servo motor to directly drive Feida, the structure is more stable.
- In order to cope with various complex and changeable box shapes of modern packaging, the ultra-small format paper feeding device can easily make up, set the most economical production paper format and greatly enhance
the competitiveness.
Laminating Part
- The big roller is made of high-grade 45 steel after heat treatment, high-temperature
quenching and surface chromium plating.
- Resin sand cast iron is selected for the main engine wallboard and base to ensure the long-term reliable and stable operation of the whole machine.
- The tooth row adopts super hard stainless steel profile to achieve accurate positioning under high speed working.
-The driving chain adopts the reinforced chain imported from Japan to improve the accuracy and stability of the machine and prolong
the service life.
Receiving Part
- The paper is fed into the receiving table by the conveyor belt and automatically drops to
the bottom.
- Two way pneumatic automatic and neat paper receiving, convenient operation and labor saving.
Electric Control System
- The advanced national safety standards in Europe and America are adopted for electrical
components and electrical circuits
-The electrical cabinet adopts air cooling device to effectively ensure the normal operation of electrical control under high
temperature conditions.
- The interface controls are integrated, and a large number of electrical switch controls are involved in the operation interface,
which is easy to operate. PLC controls the operation and fault monitoring system of the whole machine.
Touch Screen
Touch screen interface operation. Standard with English and Chinese version. Other language customized supportable.
