Automatic Embossing Machine For Paper Card

ZDYW Automatic Embossing Machine for Paper is Premium Paper Processing Machinery.

Automatic embossing machine is a machine that by carving fine smooth lines on surface of the embossing roll, then the smooth lines on the surface can be directly pressed on special paper such as paper, gold and silver card, aluminum foil paper and coated paper through embossing.

Automatic Paper Embossing Machine

Automatic Embossing Machine is suitable for high-grade wine boxes, cosmetics boxes, drug packaging boxes, food packaging boxes, cigarette boxes, calendar boxes, advertising pictures and other products. It can form refraction patterns, frosted patterns, ice patterns and concave convex patterns.

Features of Automatic Embossing Machine For Paper Card

1.Speed of 6000 sheets / hour.

2.Vacuum pump drives Feida and paper feeding.

3.There is a double sheet control in front of the paper feeding. It will stop automatically when the paper is fed with two or more sheets.

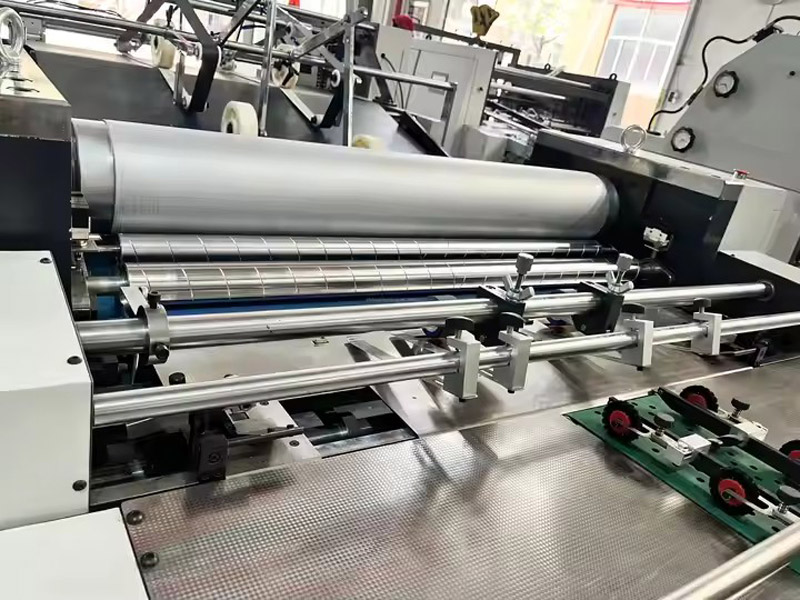

4.The embossing part is composed of wool roller and embossing roller.

5.The paper is pressed out of the grain pattern between wool roller and embossing roller.

6.The machine is driven by frequency converter. The whole machine is controlled by PLC. There is a pressure of 50 tons between the two rollers of the machine.

Applicable Industries of Automatic Embossing Machine For Paper Card

hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Other, Advertising Company

Model	ZDYW-1100	ZDYW-1100J
Max. Paper Size	1080*800mm	1080*1100mm
Min. Paper Size	280*280mm	280*280mm
Paper Thickness	150-800gsm	150-800gsm
Working Speed	6000sheets/hour	6000sheets/hour
Stack Height of Paper Feeding & Receiving Table	920mm	920mm
Temperature Range	20-120°C	20-120°C
Max. Working Pressure	50T	50T
Power	9.5kw	9.5kw
Weight	3500kg	3800kg
Dimension(LWH)	6300×1800×1800mm	7200×1800×1800mm

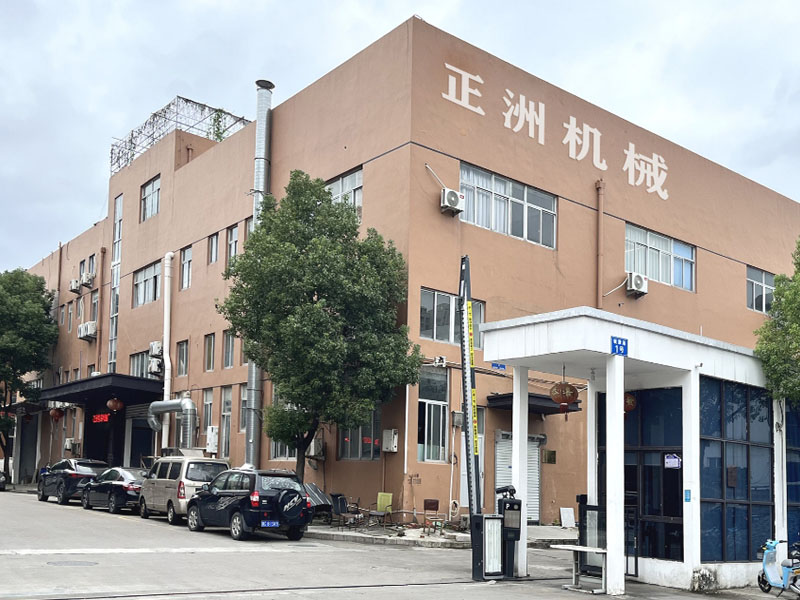

Ruian Zhengzhou Packing Machinery Factory

Is a special enterprise manufacturing Card mounting machine and Automatic embossing machine.

The purpose of Zhengzhou enterprise: relying on quality to survive and making profits with management. And we have also devoted ourselves to developing, promoting quality and perfecting service system etc.

We are trying out best to provide betterquality service.

For more information about embossing machines, you can watch the video
