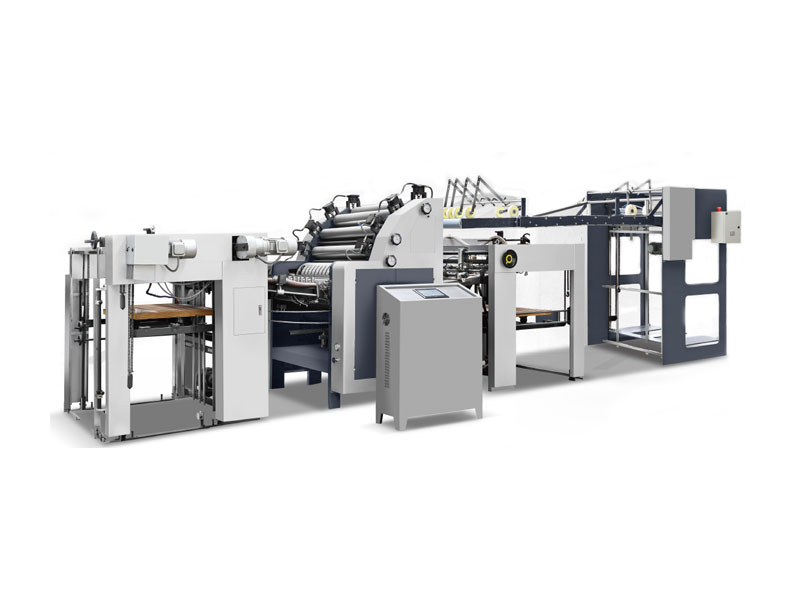

ZDBK-1100 Fully Automatic Cardboard Overlay Machine

Characteristic

Important parts of all imported bearings.

Base and wall panels with castings, shock absorption and stability better.

Bite the drum and the pressure rollerwall thickness of 25-28mm, bending, compression performance, the surface after heat treatment and hard chrome plating, the surface
hardness is high, easy to corrosion, easy to bubble.

Four pairs of strong pressure roller by the hydraulic system control for the pressure, the pressure is stable, the end, the combination of paper firm, smooth, beautiful product
production, crisp.
The main transmission parts all with helical gears, tooth surface by heat treatment, transmission smooth, easy to wear.
Electrical PLC programmable logjic controller, the inverter can be specified by the customer, userfriendly dialogue interface, so that the operation is more simple
and convenient.
Automatic glue system, so that more stable glue, glue even.
The paper feeder has a pre-stacking structure that can make the work more efficient.
Uniform sizing, less glue, low cost, do not have to wait for the drying time, can be directly into the next die-cutting process.
Cots by the well-known domestic manufacturers supporting (Hebei Spring Silver Star).

Product Introduction Of Fully Automatic Cardboard Overlay Machine

Fully automatic cardboard overlay machine, the use of tissue and the end of paper were set up a new feeder feeder, and the use of overlapping paper to make the paper feed process more accurate and accurate. At the end of the paper according to the different requirements of paper, can adjust the thickness of the coating. Configuration glue adjustment system, can be operated in a non-stop state, S0 that glue coating thinner,more uniform, to improve efficiency and save the effect of glue. The bottom of the paper by a pair of high-strength bite paper compound roll positioning, paste, after the first press into the powerful press roller after a number of pressure output, the finished product into the collection machine, with three sides of the way to stack paper stack Height up to 1600mm.

The machine configuration PLC programmable controller, set the multi-level pressure, automatic control hydraulic station. Production of high precision products, the end of the combination of paper firm, smooth, finished into the mold and other processes immediately do not have to wait for curing. Automated production, high efficiency, greatly reducing the cost of production, for enterprises to create considerable benefits.

The automatic production line to adapt to the tag, Jiuhe, shoe boxes and other packaging products, paper composite, enhance the production process, shorten the process time andimprove the economic efficiency of enterprises.
